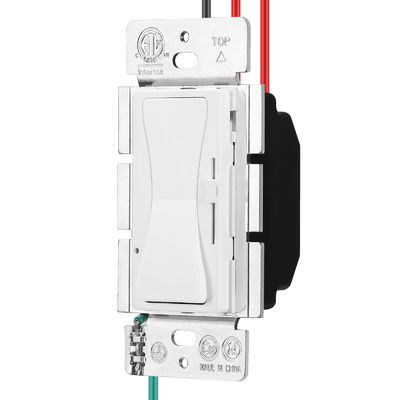

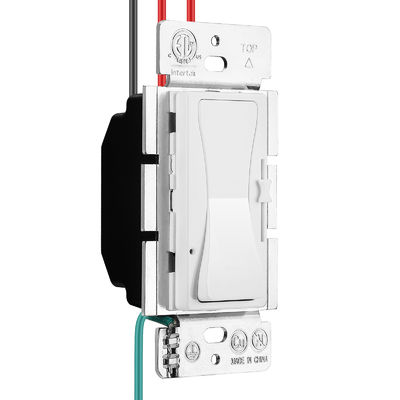

3 Way Wall Mount Dimmer Switch 0 - 10V LED Panel Light Dimmer Switch Rocker Switch
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | No Brand |
| Certification | ETL |
| Model Number | KD-11A010V |
| Minimum Order Quantity | 60pcs |
| Price | 5.8-6.9 USD |
| Packaging Details | 60pcs/CTN |
| Delivery Time | With 3-5 Days |
| Payment Terms | 100% T/T In Advance |
| Supply Ability | 8000pcs/Day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

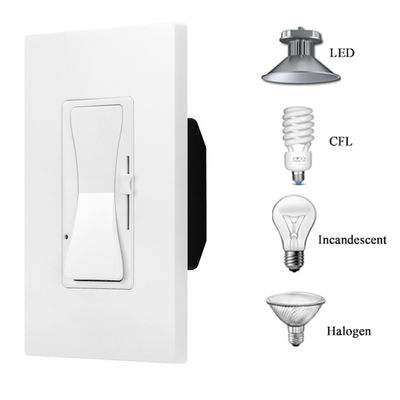

| Name | Wall Mount Dimmer Switch | Compatibility | LED, CFL, Incandescent, Fluorescent |
|---|---|---|---|
| Color | White Black, Ivory, Almond Or Customize | Neutral Wire | Not Required |
| Dimming Range | 5%-100% | Material | PC+ABS |
| Standard(s) | UL 1472、CSA C22.2 No.184.1-15 | Maximum Load | 300W Max For LED/CFL, 600W Max For INC/Halogen |
| Operating Temperature | -10°C To 40°C | ||
| Highlight | 3 Way Wall Mount Dimmer Switch,Wall Mount Dimmer Switch 10V,10V LED Panel Light Dimmer Switch |
||
Product Description
3 Way Wall Mount Dimmer Switch 0-10V LED Panel Light Dimmer Switch Rocker Switch
Wall Mount Dimmer Switch LED Panel Light Dimmable 3 Way Rocker Switch
Potential Drawbacks and Considerations

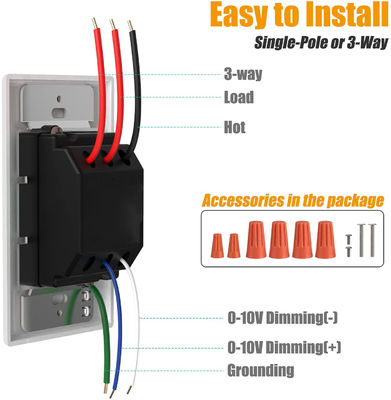

- Extra Wiring: 0-10V systems require an extra pair of low-voltage wires (typically purple and gray) to be run from the dimmer to each dimmable fixture or driver. This can increase installation complexity and cost, especially in residential or retrofit projects.
- Voltage Drop: In very long wiring runs, the low-voltage signal can experience voltage drop, which may lead to slight inconsistencies in dimming across different fixtures. Using shielded, twisted pair wires can help mitigate this.
- Unidirectional Communication: Most 0-10V systems are unidirectional, meaning the dimmer sends a signal to the driver but doesn't receive feedback. This limits advanced system diagnostics and prevents features like individual fixture addressing.
Key Performance Advantages
- Smooth and Flicker-Free Dimming: Controls a low-voltage DC signal for smooth dimming down to 1% or even 0.1% of light output without flickering or buzzing issues.
- High Precision: Linear relationship between voltage and light output (e.g., 5V equals 50% brightness) provides precise control for creating specific ambiances.
- Scalability: A single dimmer can control a large number of fixtures simultaneously, ideal for expansive areas like warehouses and commercial spaces.
- Energy Efficiency: Fine-tuning light levels enables significant energy savings and can extend LED fixture lifespan.
- Compatibility: 0-10V dimming is a widely recognized industry standard (IEC 60929 Annex E), ensuring good compatibility between manufacturers.
Technical Specifications
| Dimmer Type | 0-10V Dimmer Switch |
|---|---|
| Input Voltage | AC100-277V AC |
| Max Load for LED/CFL | 150W |
| Max Load for INC/Halogen lamp | 600W |
| Wire Application | Single pole & 3 way |
| Material for Enclosure | PC+ABS |
| Certificate | cETLus |
| Material for Yoke | Aluminum plate |
| Standard | UL 1472, CSA C22.2 No.184.1-15 |
| Flame Classifications | UL94-V0 |
