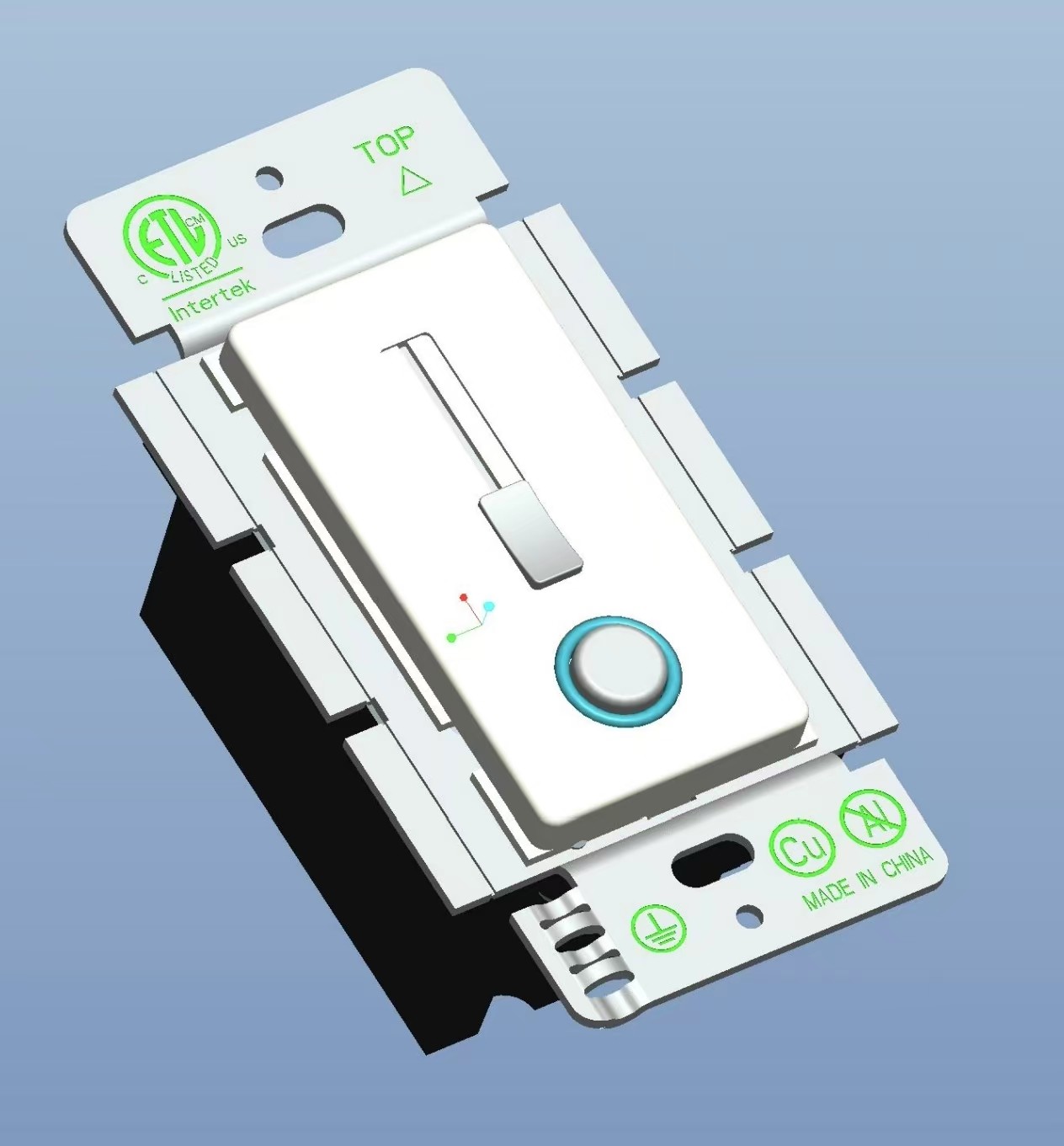

120V LED Dimmable Switches Rectangle Dimmer Light Switch 12V With Driver
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Neutral or OEM label |
| Certification | ETL |
| Model Number | KD-DC12V60W |
| Minimum Order Quantity | 100pcs |
| Price | 10-12USD |
| Packaging Details | Neutral box and user manual, 60pcs/CTN |
| Delivery Time | With 15-20 Days |
| Payment Terms | T/T |
| Supply Ability | 5000pcs/Day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | LED Dimmable Switches | Installation Type | Wall Mounted |
|---|---|---|---|
| Input | AC 125V | Output | DC12V |
| Max Load | 60W | Frequency | 60Hz |
| Material | PC+ABS | Application | For LED Strip |
| Conection | Directly Connect With LED Strip, No Need Driver | ||
| Highlight | 120V LED Dimmable Switches,LED Dimmable Switches Rectangle,Dimmer Light Switch 12V |
||
Product Description
120V LED Dimmable Switches Rectangle Dimmer Light Switch 12V With Driver
120V Rectangle 12V Dimmer Switch with Driver - A high-performance lighting control solution for precise dimming of LED strips and fixtures.
Product Specifications
| Attribute | Value |
|---|---|
| Installation type | Wall Mounted |
| Input | AC 125V |
| Output | DC12V |
| Max Load | 60W |
| Frequency | 60Hz |
| Material | PC+ABS |
| Application | For LED Strip |
| Connection | Directly connect with LED Strip, no need driver |
Working Principle & Dimming Technology
DC dimmers adjust light source brightness by modifying current or voltage, performing voltage conversion and stable current control. Two primary dimming technologies are employed:
- PWM (Pulse Width Modulation): Adjusts LED brightness by altering duty cycle to control average current
- Linear Dimming: Controls current through LED by modifying input voltage or current detection resistor resistance
Key Advantages
- Flicker-free & Silent Operation: Advanced PWM technology eliminates flickering and reduces noise
- High Efficiency: Exceptional reliability with extended operational lifespan
- Multi-Channel Common Anode: Supports multiple LED lamp configurations
- Precision Dimming: 0.1% adjustment accuracy for optimal lighting control
Application Scenarios
- Indoor Lighting: Residential, office, and commercial spaces
- Outdoor Lighting: Street, landscape, and public area illumination
- Automotive Lighting: Vehicle interior and exterior lighting systems
- Stage Lighting: Performance and event lighting solutions
- Advertising Displays: LED billboards and informational displays
- Smart Lighting: IoT-enabled lighting control systems
Technical Specifications
| Item No. | KD-DC12V60W |
|---|---|
| Feature | Dimmer with driver built in |
| Input | AC120V |
| Output | DC12V |
| Max Load | 60W |
| Yoke | Aluminum plate |
| Switching Life | 40,000 cycles |
| Flame Classification | UL94-V0 |
| Operating Temperature | -10℃ to 40℃ |
| Wires | 18AWG Copper |
