125V 20A GFCI Electrical Outlet Self Test Ground Fault Interrupters
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | No Brand |
| Certification | ETL |
| Model Number | KG-S20T |
| Minimum Order Quantity | 50pcs |
| Price | 4.8-7.9USD |
| Packaging Details | Neutral user manual and color box |
| Delivery Time | With 15-20 Days |
| Payment Terms | T/T |
| Supply Ability | 8000pcs/Day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GFCI Electrical Outlet | Number Of Outlets | 1 |
|---|---|---|---|
| Grounding | Self-grounding | Mechanical Life | 6000 Times |
| Installation Type | Wall Mount | Self Test | Yes |
| Operating Temperature | -20-66C | Trip Level | 4-6mA |
| Voltage | 125V 60Hz | ||
| Highlight | 125V GFCI Electrical Outlet,20A GFCI Electrical Outlet,Self Test Ground Fault Interrupters |
||
Product Description

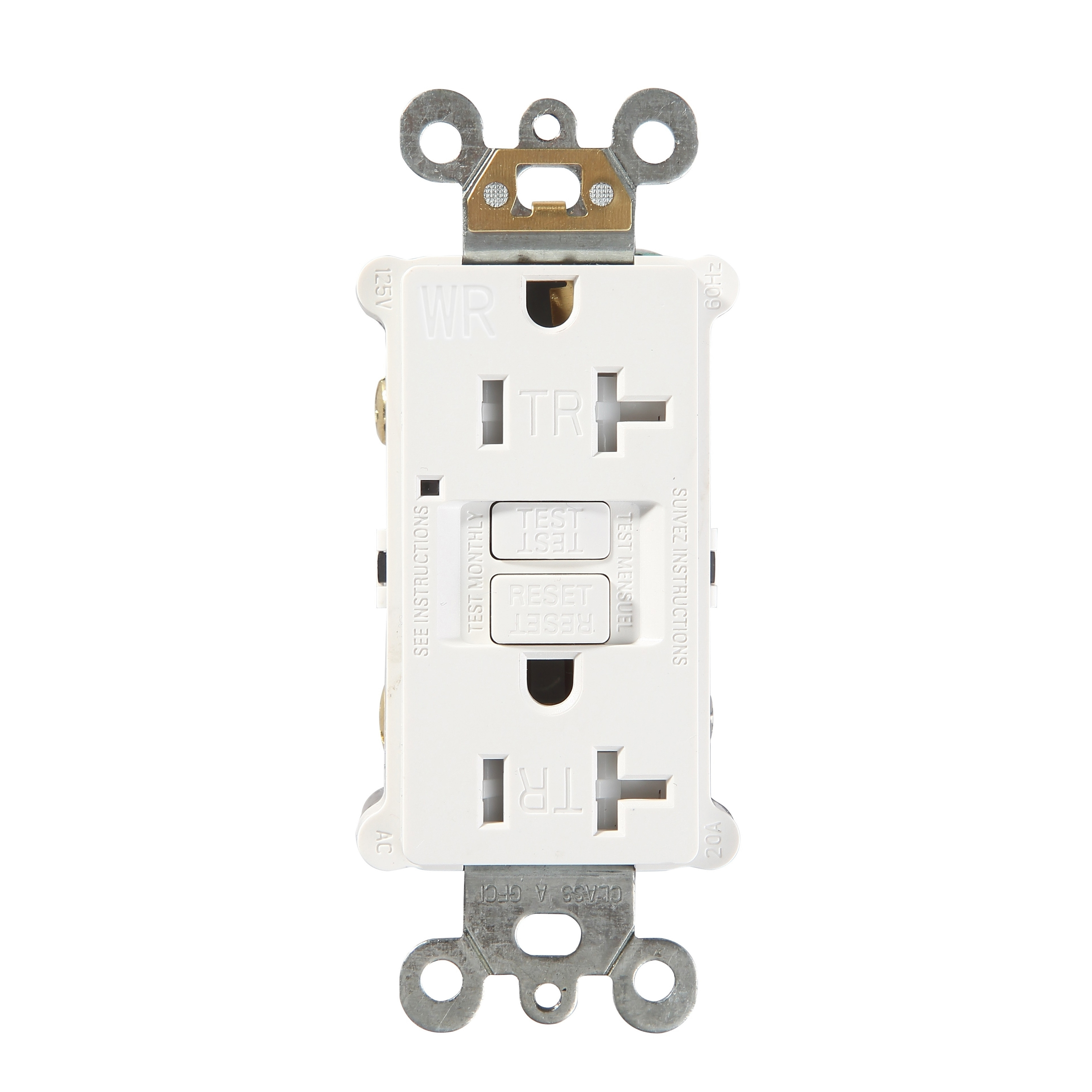

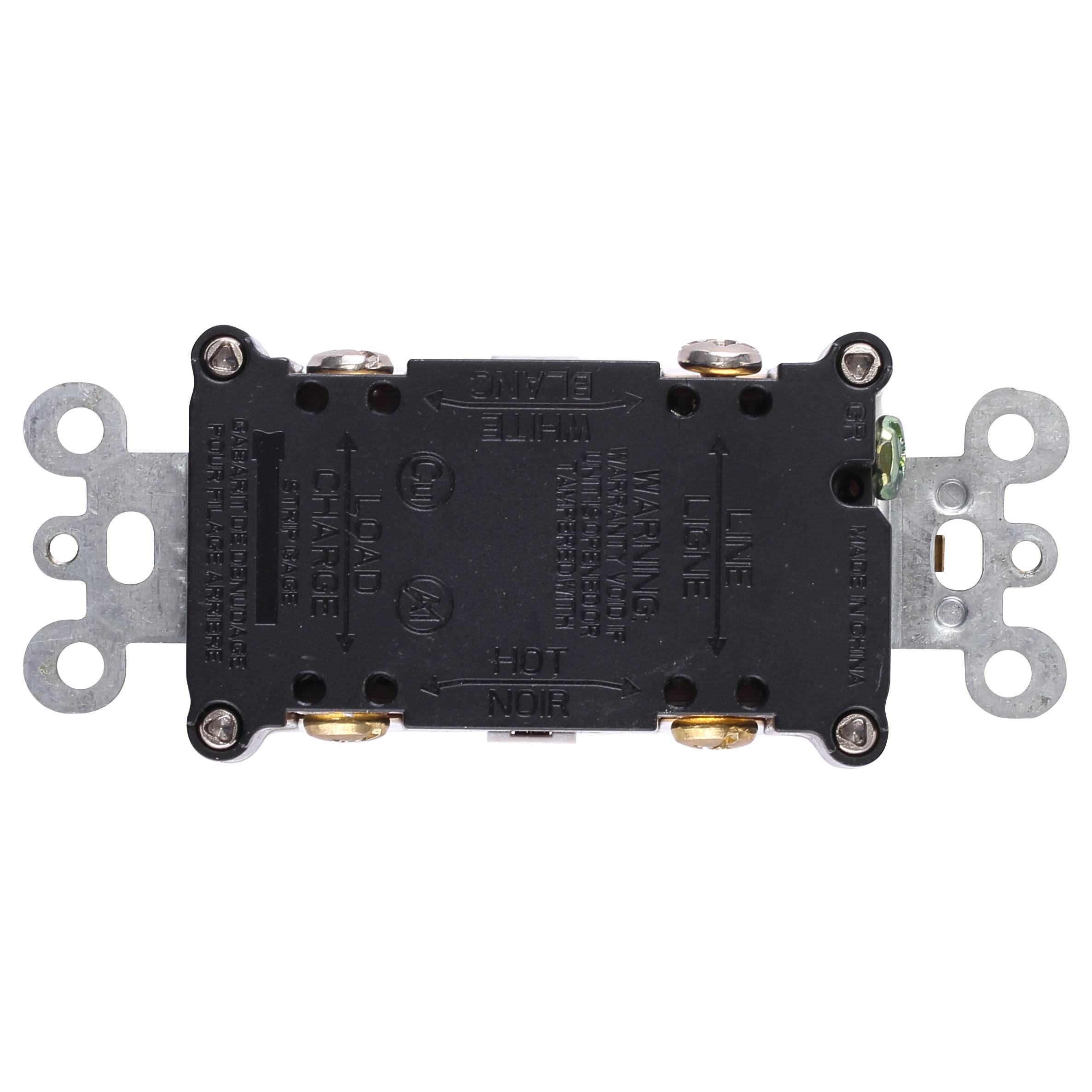

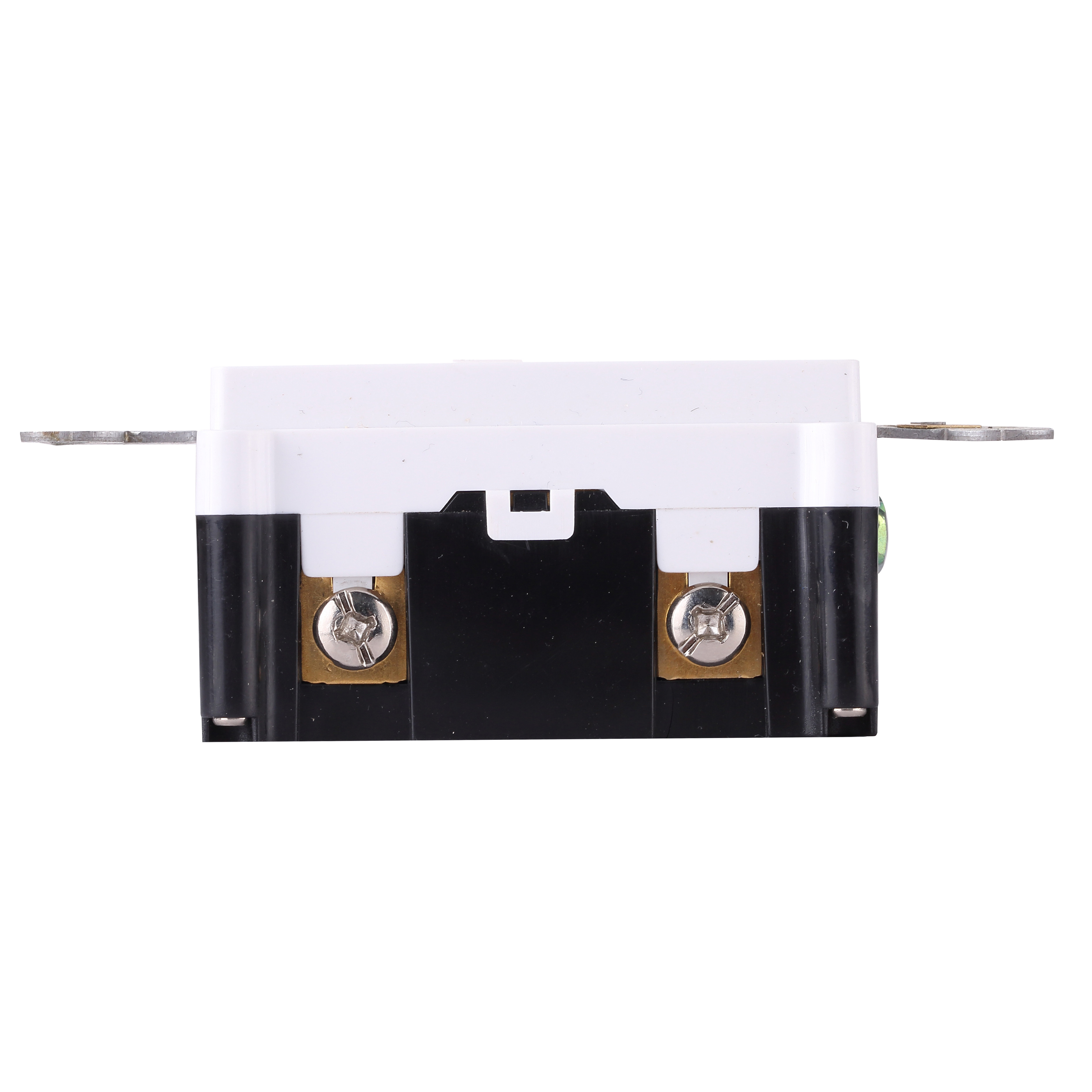

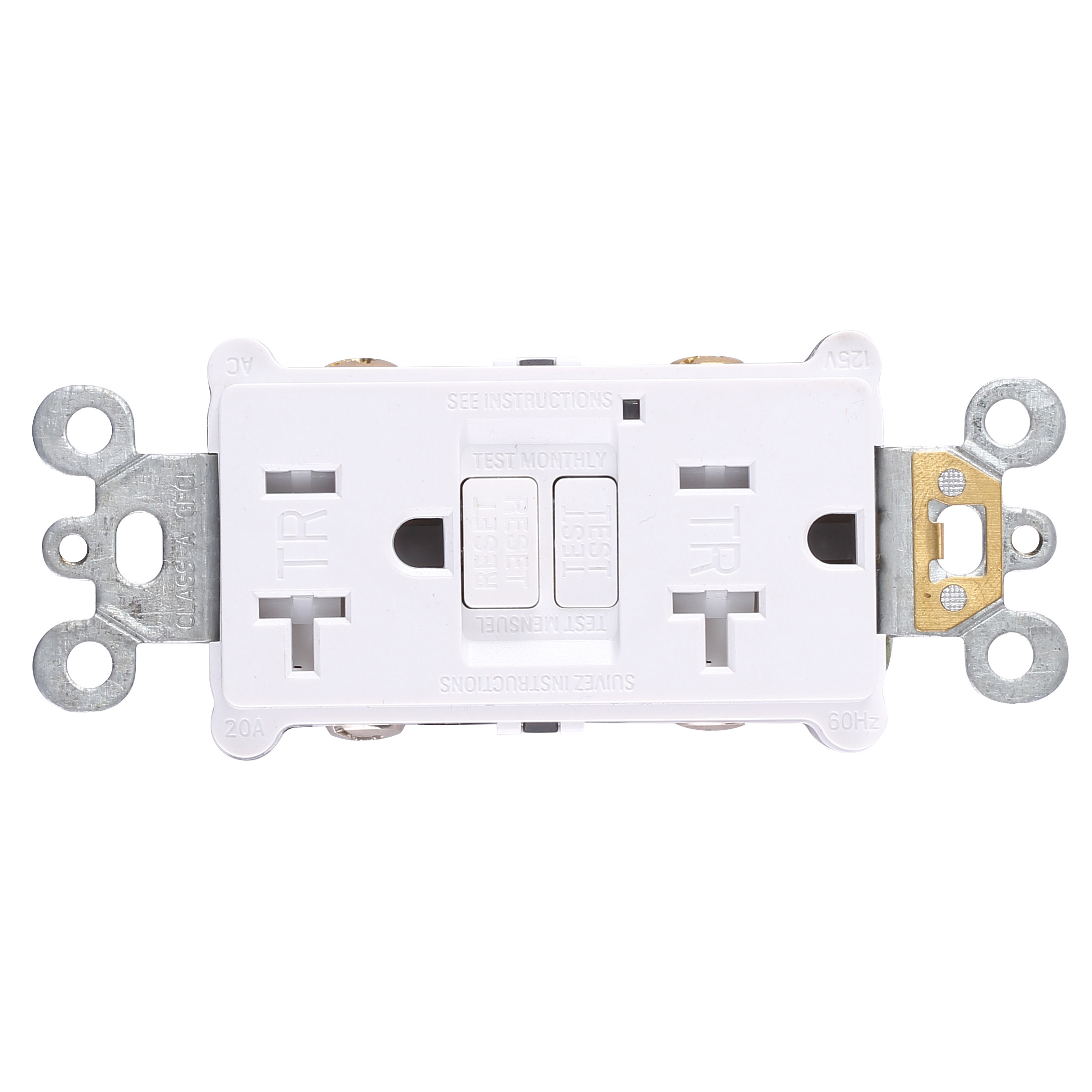

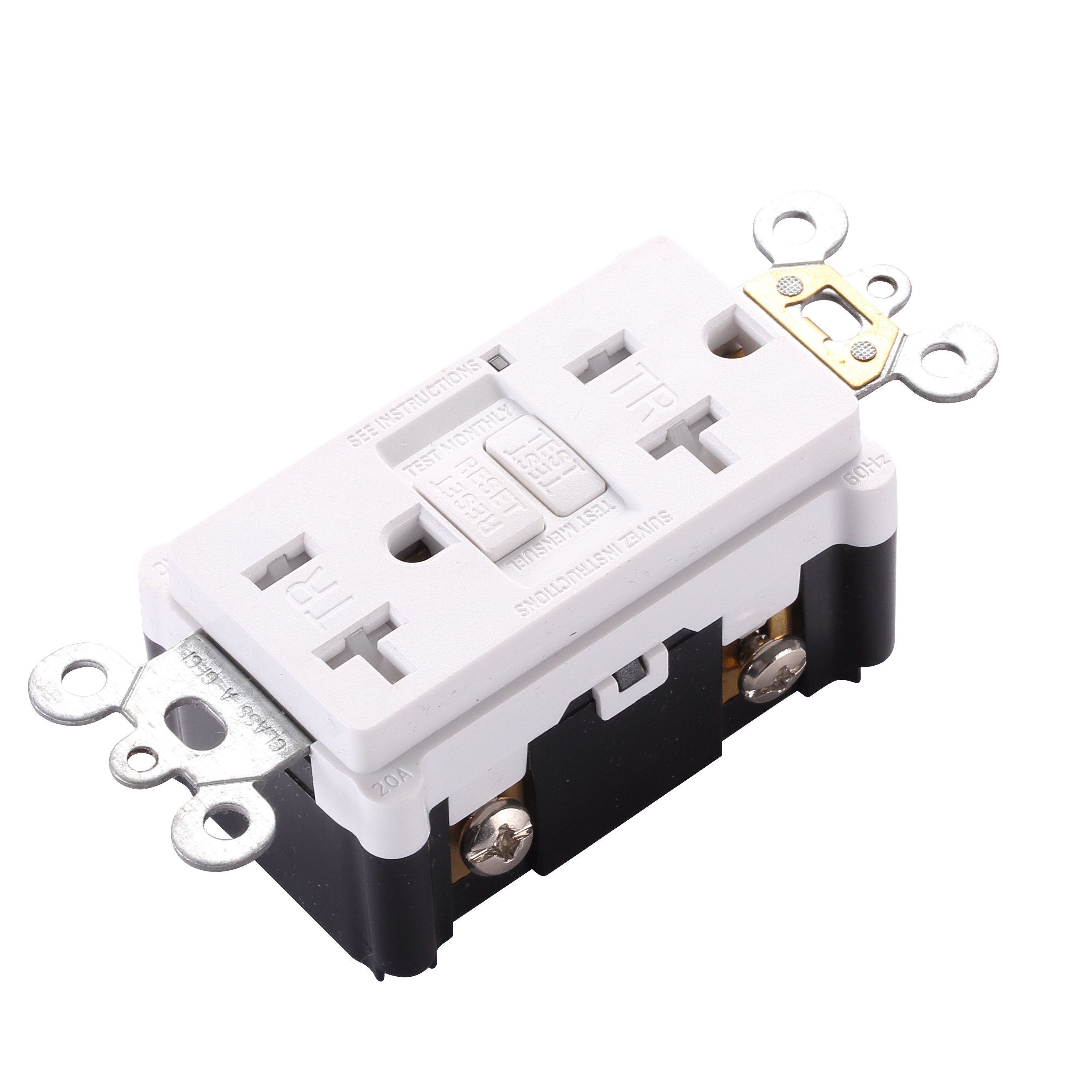

125V 20A GFCI Electrical Outlet Self Test Ground Fault Interrupters
125V 20A Slim GFCI Electrical Outlet Self Test Grounding Fault Interruptor
Product Specifications
| Attribute | Value |
|---|---|
| Number Of Outlets | 1 |
| Grounding | Self-grounding |
| Mechanical life | 6000 Times |
| Installation Type | Wall Mount |
| Self test | Yes |
| Operating Temperature | -20-66°C |
| Trip Level | 4-6mA |
| Voltage | 125V 60Hz |
Product Description
A GFCI receptacle (Ground Fault Circuit Interrupter) is a specialized protective device for the North American market. It operates at 102VAC-132VAC and 60HZ, with an operating temperature range of -35°C to 66°C. It trips within 25ms at 4-6mA leakage current and must be UL or ETL certified.
Safety Features
- Ground fault protection
- Over-voltage protection
- Under-voltage protection
- Switching functions
Working Principle
The GFCI constantly monitors current flow between hot and neutral wires. When an imbalance exceeding 6mA is detected (indicating leakage or shock hazard), it cuts power within 0.025 seconds to protect people and property.
Technical Parameters
| Parameter | Value |
|---|---|
| Amperage | 20A |
| Material | PC+ABS |
| Mechanical life | 6000 Times |
| Self test | Yes |
| Trip Level | 4-6mA |
Recommended Applications
Residential Buildings
Install in bathrooms, kitchens, and outdoor areas for protection against electrical shocks.
Commercial Establishments
Ideal for restaurants, hotels, and offices with frequent appliance use.
Educational Institutions
Use in classrooms, labs, and dormitories to prevent electrical accidents.
Healthcare Facilities
Critical for hospitals and clinics to safeguard patients and equipment.
Industrial Sites
Essential for factories and warehouses to protect machinery.
Outdoor Spaces
Weather-resistant design for gardens, patios, and pool areas.
